Description

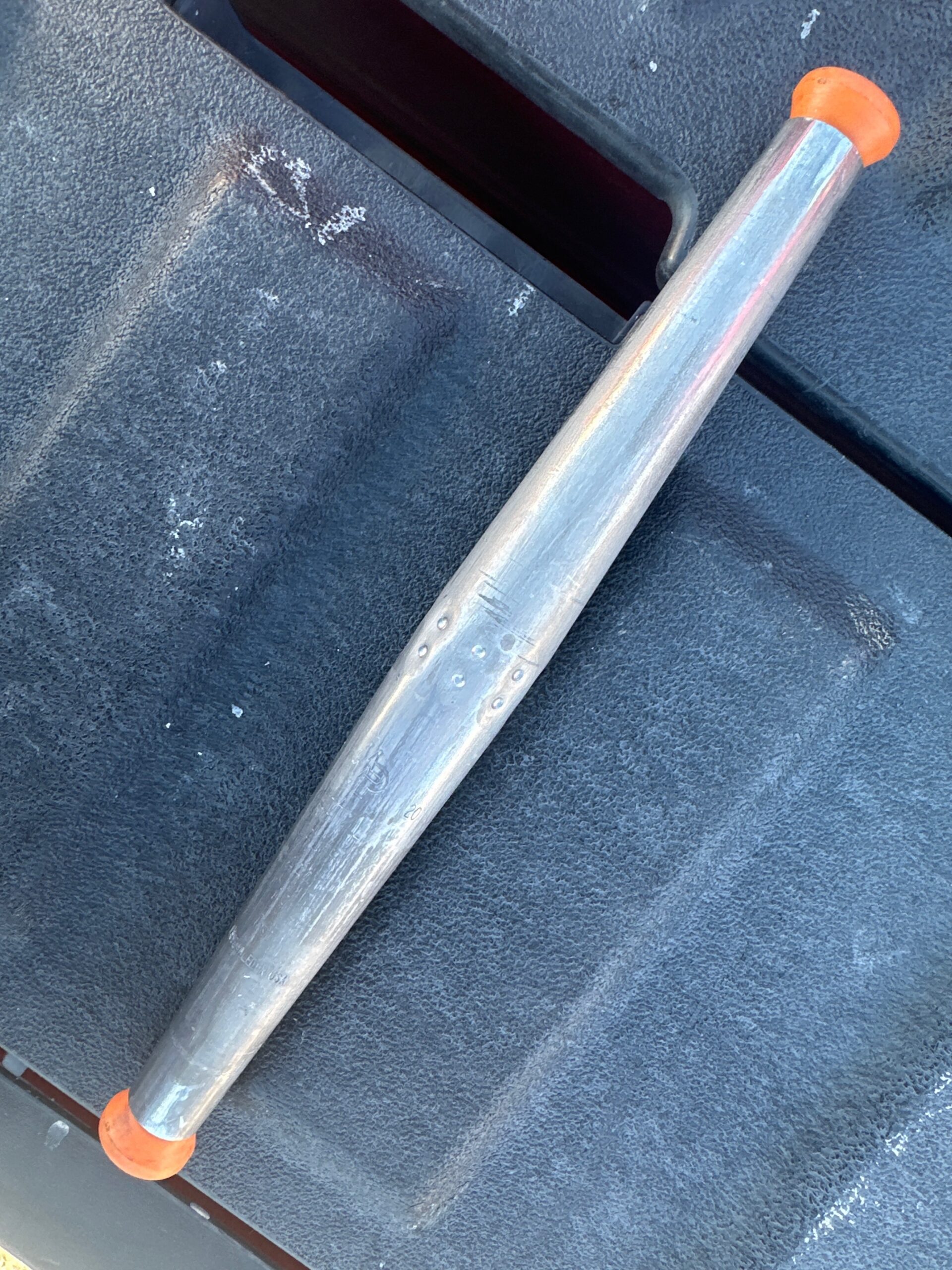

The MacLean Power Systems 7651 ConductRlink Tension Splice is an automatic full-tension connector designed for #4 ACSR, #4 AAAC, and #4 AAC conductors. It is rated to hold a minimum of 95% of the conductor’s rated breaking strength (RBS) and meets ANSI C119.4 Full Tension Class A requirements. The connector features a factory-installed inhibitor and an orange color-coded strand guide for easy conductor identification. Designed for reliable overhead electrical distribution applications, it provides a secure and durable connection without the need for compression tooling.
Dimensions & Specifications:
Catalog Number: 7651
Conductor: #4 ACSR, #4 AAAC, #4 AAC
Conductor Diameter Range: 0.229″–0.265″
Length: 9.66″
Width: 0.92″
Rating: Minimum 95% RBS
Standard: ANSI C119.4 Full Tension Class A
Color Code: Orange
Standard Package: 100 pieces
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
