Description

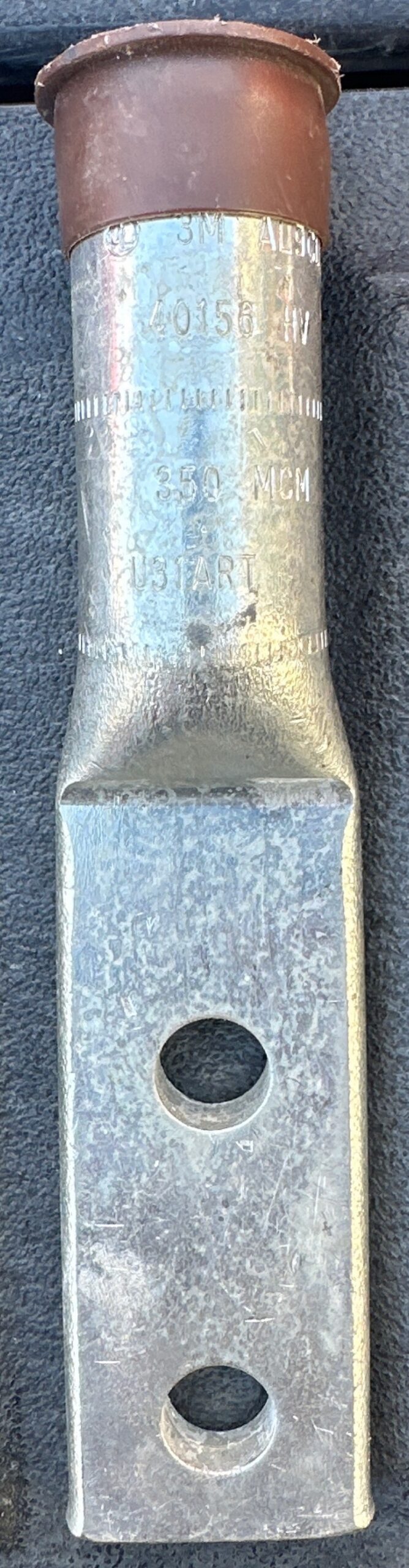

The 3M Scotchlok™ 40156 is a two-hole aluminum compression lug designed for terminating 350 kcmil aluminum or copper conductors. It features an aluminum body with a brown color code, a standard barrel, and a 2-hole NEMA-style pad for secure equipment connections. The lug is rated for applications up to 35 kV when properly installed and uses U31ART or U655 compression dies.
Dimensions & Specifications:
Brand: 3M
Series: Scotchlok™ 40100
Catalog Number / SKU: 40156
3M Stock Number: 7100007050
Type: Two-Hole Aluminum Compression Lug
Conductor: 350 kcmil AL/CU
Material: Aluminum
Finish: Tin-plated
Color Code: Brown
Stud Size: 1/2″
Mounting: 2-hole
Overall Length: 6.56″
Barrel Length: 2.25″
Inside Diameter: 0.72″
Outside Diameter: 1.105″
Pad Length: 3.56″
Pad Width: 1.50″
Die Index: 299 / 655
Compatible Die: U31ART / U655
Voltage Rating: Up to 35 kV
Standards: UL Listed
Country of Origin: USA
UPC: 054007136651
Minimum order: 10 pieces from some distributors
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped. 57.
