Description

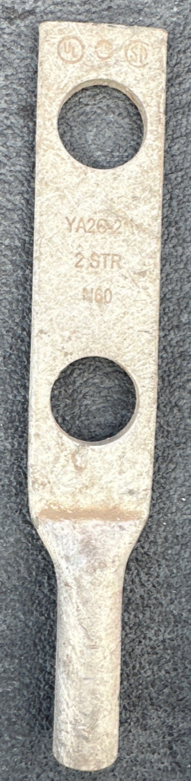

The BURNDY YA2C2N is a two-hole, long-barrel copper compression lug designed for 2 AWG stranded copper conductors. It features a tin-plated copper body, internal chamfered barrel for easier conductor insertion, and a two-hole NEMA pad that helps prevent rotation after installation. The lug uses Die Index 10 and is rated for applications from 600 VAC up to 35 kV when properly installed.
Dimensions & Specifications
Brand: BURNDY
Catalog Number: YA2C2N
Type: 2-Hole Compression Lug
Conductor: 2 AWG stranded copper
Conductor Code: 60 (37) Navy
Material: Copper
Finish: Electro-tin plated
Color Code: Brown
Die Index: 10
Stud Size: 1/2″
Hole Diameter: 0.56″
Hole Spacing: 1-3/4″
Overall Length: 4.64″
Barrel Length: 1.25″
Barrel OD: 0.42″
Pad Width: 0.83″
Strip Length: 1-5/16″
Barrel: Long, internally chamfered
Temperature Rating: 90°C / 194°F
Voltage Rating: 600 VAC to 35 kV
Standards: UL 486A-486B, CSA
Inspection Window: No
