Description

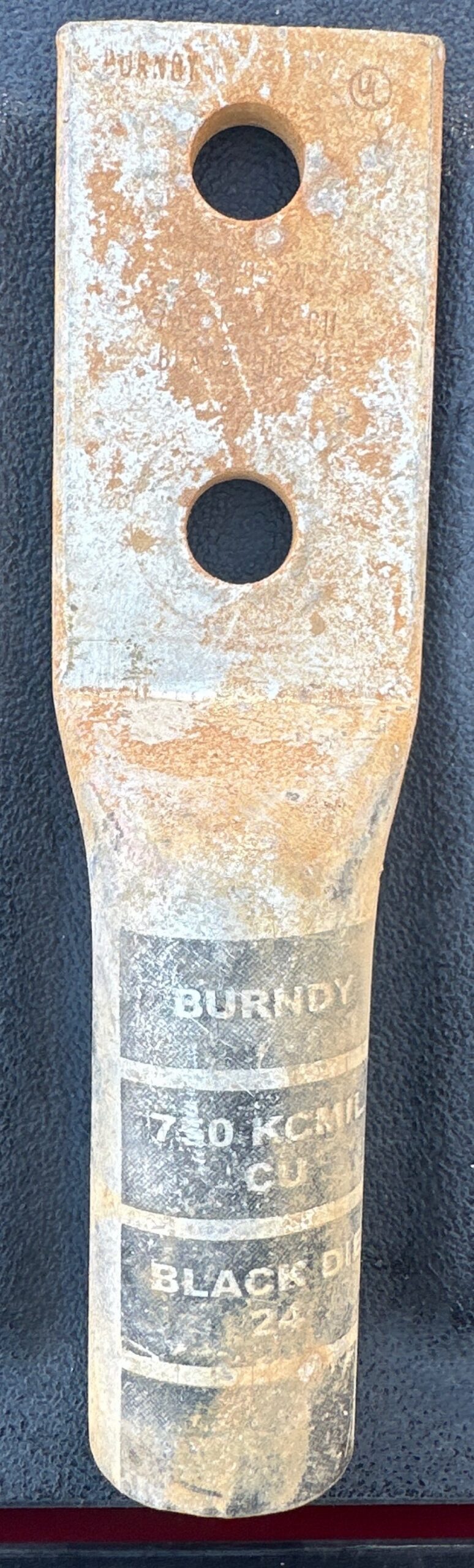

The BURNDY YA39 HYLUG™ is a long-barrel copper compression lug designed for terminating 750 kcmil stranded copper conductors. It is manufactured from high-conductivity copper and electro-tin plated for corrosion resistance. The black color code identifies the 750 kcmil conductor size and the required 24 die index. This version has a single 5/8-inch stud hole.
Dimensions & Specifications:
Brand: BURNDY
Catalog Number / SKU: YA39
Series: HYLUG™
Type: Long-Barrel Compression Lug
Conductor: 750 kcmil stranded copper
Material: Copper
Finish: Electro-tin plated
Color Code: Black
Die Index: 24
Mounting: 1-hole
Stud Size: 5/8″
Barrel: Long, internally chamfered
Overall Length: approximately 6.4–6.9″
Voltage Rating: Up to 35 kV when properly installed
Temperature Rating: 90°C
Standards: UL 486A-486B / CSA
UPC: 781810521755
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
