Description

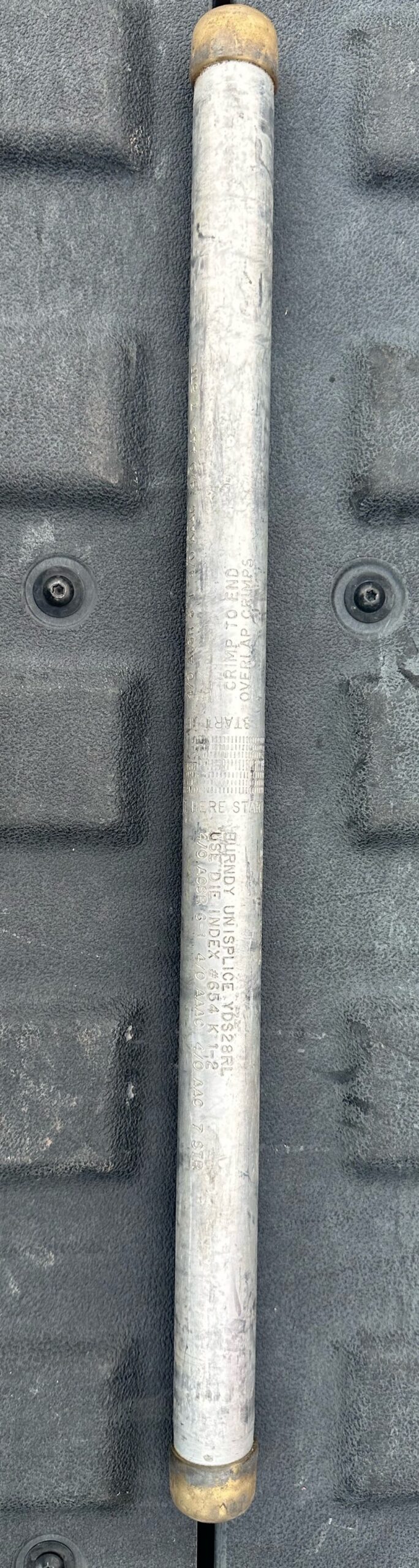

The BURNDY YDS28RL UNISPLICE™ is a single-sleeve aluminum compression splice designed for full-tension splicing of 4/0 AWG conductors. It accommodates 4/0 ACSR Penguin, 4/0 aluminum stranded, 4/0 compressed ACSR, and 246.9 kcmil AAAC 6201/5005 conductors. The single-sleeve design eliminates the need for a separate steel inner sleeve when splicing ACSR. It is factory-filled with PENETROX™ joint compound and capped, helping prevent oxidation and simplifying installation.
Dimensions & Specifications
– Brand: BURNDY
– Catalog Number: YDS28RL
– Product Type: UNISPLICE™ single-sleeve full-tension compression splice
– Material: Aluminum
– Conductor Size: 4/0 AWG
– ACSR: 4/0 (6/1) Penguin
– ACSR Compressed: 4/0 AWG
– Aluminum Stranded: 4/0 AWG
– AAAC 6201: 246.9 kcmil (7)
– AAAC 5005: 246.9 kcmil (7)
– Die Index: 654
– Overall Length: 18.25″
– Outside Diameter: 1.02″
– B Dimension: 9.06″
– Oxide Inhibitor: Pre-filled with PENETROX™
– Plating: Unplated aluminum
– Trade Name: UNISPLICE™
– Type: YDS-RL
– Carton Quantity: 25
– Minimum Pack: 1
– UPC: 781810820742
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
