Description

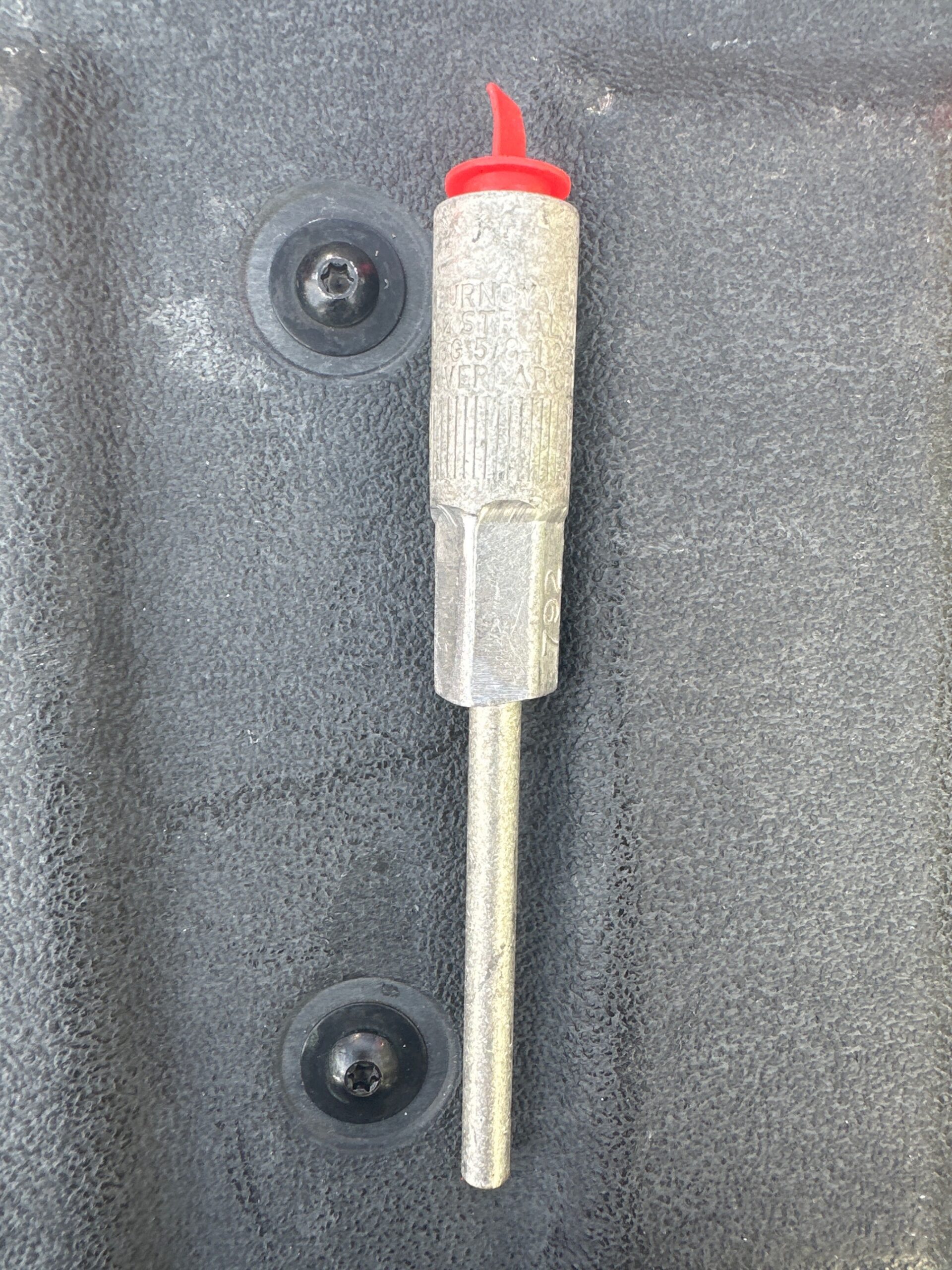

The Burndy YE2R25 HYPLUG Compression Pin Adapter is an aluminum compression pin terminal designed for terminating #1–#2 stranded aluminum and #2 ACSR conductors at cutouts, transformers, arresters, and other compatible utility equipment. It features an aluminum body with a tin-plated copper pin for a reliable electrical connection. The pin can be bent to the desired angle for easier equipment insertion, while the terminal is pre-filled with PENETROX™ A-13 joint compound and sealed with a color-coded cap to help protect the connection from oxidation and contamination. The YE2R25 uses BG, 5/8-1, 243, or 8A die indexes.
Dimensions & Specifications:
Manufacturer: Burndy / Hubbell
Catalog Number: YE2R25
Type: HYPLUG™ YE-R Compression Pin Terminal
Conductor: #1–#2 stranded aluminum
ACSR: #2 ACSR, 6/1 Sparrow or 7/1 Sparate
Overall Length: 4.625″
Outside Diameter: 0.65″
Pin Length: 2.50″
Pin Diameter: #2 solid copper
Body Material: Aluminum
Pin Material: Tin-plated copper
Color Code: Red
Die Index: BG / 5/8-1 / 243 / 8A
Joint Compound: PENETROX™ A-13
Application: Cutouts, transformers and arresters
UPC: 781810154106
Carton Quantity: 25 EA
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
