Description

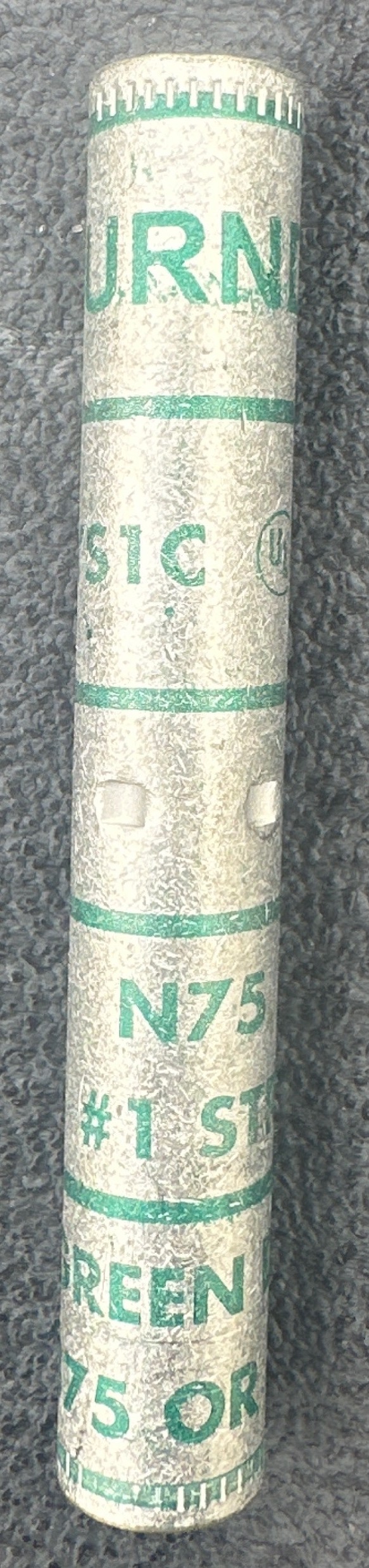

The BURNDY YS1C HYLINK™ is a long-barrel copper compression splice designed to make permanent, high-strength connections between 1 AWG stranded copper conductors. Its seamless copper barrel is tin-plated to resist corrosion and features internal center-stop indentations to ensure proper conductor insertion. The green color code identifies the correct connector and compatible 11 or 375 die index tooling. It is UL/CSA listed for applications up to 35 kV.
Dimensions & Specifications:
Brand: BURNDY
Catalog Number: YS1C
Series: HYLINK™
Type: Long-Barrel Compression Splice
Conductor: 1 AWG stranded copper
Conductor Class: Navy 75 (37)
Material: Copper
Finish: Electro-tin plated
Color Code: Green
Overall Length: 3.07 in
B Length: 1.34 in
Outside Diameter: 0.46 in
Strip Length: 1-7/16 in
Die Index: 11 or 375
Barrel Style: Long, chamfered
Center Stops: Yes
Maximum Voltage: 35 kV
Temperature Rating: 90°C
Standards: UL 486A-486B; CSA approved
Carton Quantity: 20
Minimum Pack: 1 EA
UPC: 781810506905
