Description

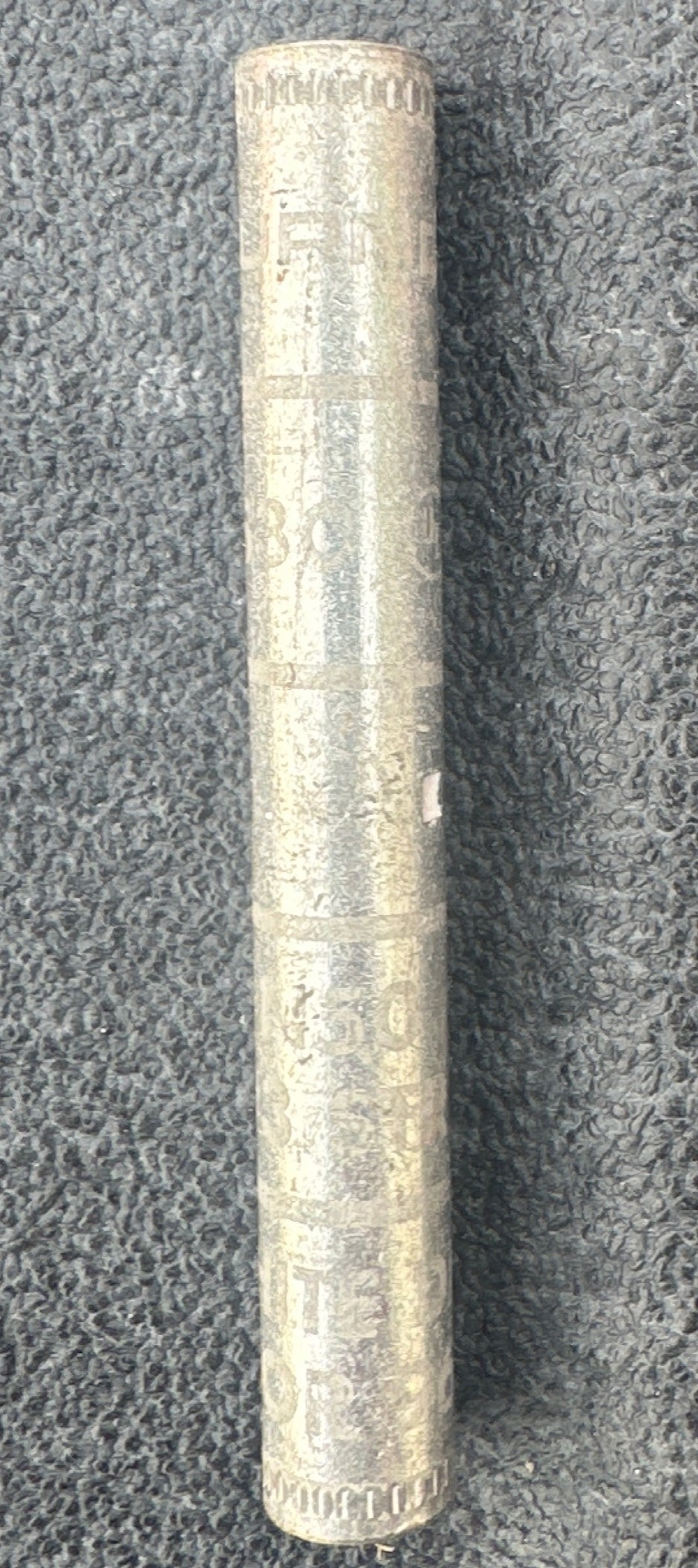

The BURNDY YS3C HYLINK™ is a long-barrel copper compression splice designed for #3 AWG stranded copper conductors. It is manufactured from seamless copper and electro-tin plated for corrosion resistance. The barrel includes center-stop indentations to ensure proper conductor insertion, and the white color code identifies the connector and its compatible compression tooling. It is suitable for heavy-duty applications up to 35 kV.
Dimensions & Specifications:
Brand: BURNDY
Catalog Number: YS3C
Series: HYLINK™
Type: Long-Barrel Compression Splice
Conductor: #3 AWG stranded copper
Material: Copper
Finish: Electro-tin plated
Color Code: White
Overall Length: 2.80 in
B Dimension: 1.22 in
Strip Length: 1-5/16 in
Die Index: 9
Barrel Style: Long, chamfered
Center Stops: Yes
Maximum Voltage: 35 kV
Temperature Rating: 90°C
Standards: UL 486A-486B; CSA approved
Carton Quantity: 25
Minimum Pack: 1 EA
UPC: 781810507100
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
