Description

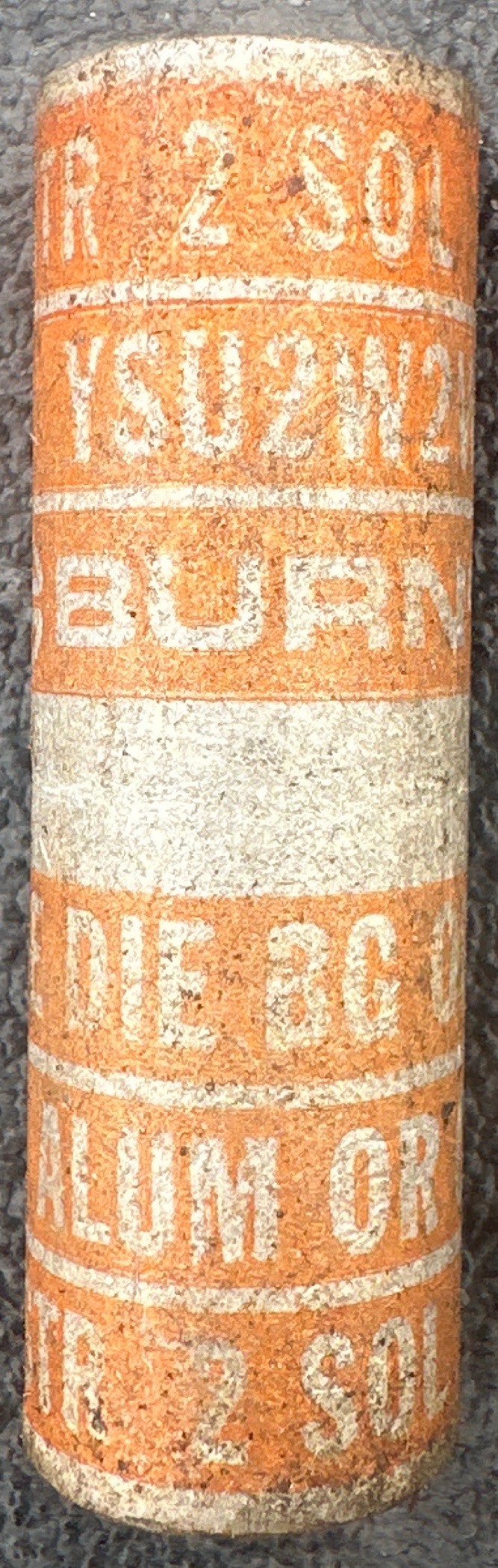

The Burndy YSU2W2W LINKIT™ is a heavy-wall aluminum compression splice designed for service entrance and distribution applications. It connects 3–4 AWG stranded or 2 AWG solid aluminum/copper conductors, as well as 4 AWG ACSR. The connector features a solid center barrier that helps minimize galvanic corrosion between conductors. It is factory-filled with PENETROX™ joint compound and strip-sealed to limit oxidation and improve connection longevity.
Dimensions & Specifications:
Brand: Burndy
Catalog Number: YSU2W2W
Series: LINKIT™
Type: Compression Splice / Service Entrance Sleeve
Application: ACSR, aluminum, copper, 6201, 5005 and compressed conductors
Conductor: 3–4 AWG stranded AL/CU; 2 AWG solid AL/CU; 4 AWG ACSR
Overall Length: 2.00 in
Outside Diameter: 0.65 in (5/8 in)
B Dimension: 0.87 in
Material: Aluminum
Plating: Hot-dipped tin
Center Stop: Solid barrier
Color Code: Orange on both sides
Die Index: 243, BG or 5/8
Oxide Inhibitor: Factory prefilled with PENETROX™
Installation: Standard compression tooling
Carton Quantity: 100
Minimum Pack: 100
UPC: 781810141946
RUS Accepted: Yes
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
