Description

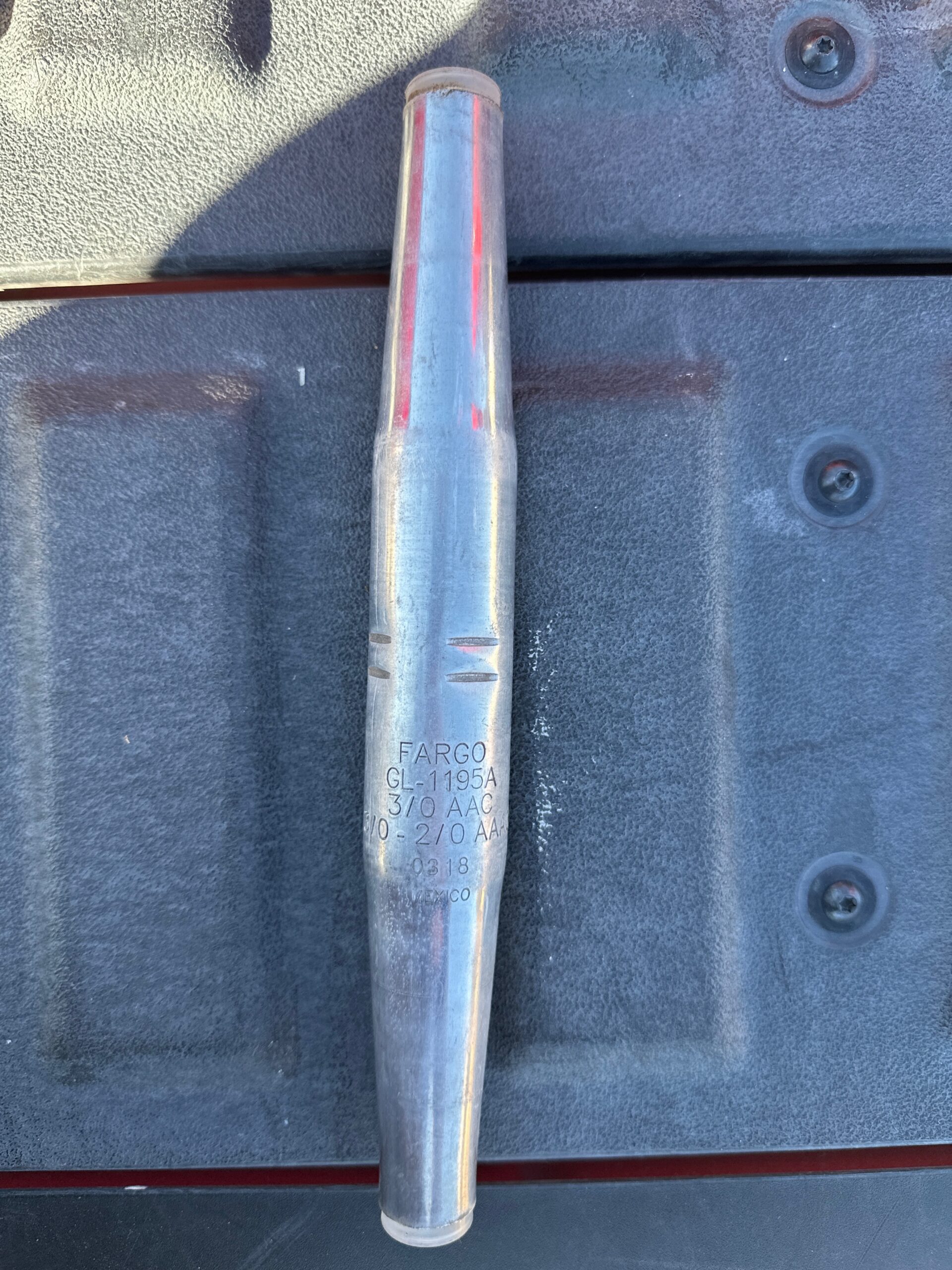

The Fargo GL-1195A Automatic Tension Splice is a full-tension automatic connector designed for splicing 3/0 AAC and 2/0–3/0 AAAC conductors in overhead electrical distribution applications. The connector is designed in accordance with ANSI C119.4, Class A, providing reliable mechanical strength and electrical conductivity without conventional compression tooling. Its high-strength aluminum alloy body and embedded jaws provide secure conductor retention, while the factory-applied inhibitor helps protect against oxidation and corrosion. The GL-1195A is an efficient solution for permanent aluminum and aluminum-alloy conductor splicing.
Dimensions & Specifications:
Manufacturer: Fargo / Hubbell Power Systems
Catalog Number: GL-1195A
Conductor: 3/0 AAC
Compatible AAAC: 2/0–3/0 AAAC
Conductor Diameter Range: 0.417″–0.532″
Length: 9.8″
Diameter: 1.2″
Material: Aluminum alloy
Application: Full-tension overhead line splice
Standard: ANSI C119.4, Class A
Protection: Factory inhibitor protected
Installation: Automatic, no conventional compression tooling required
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
