Description

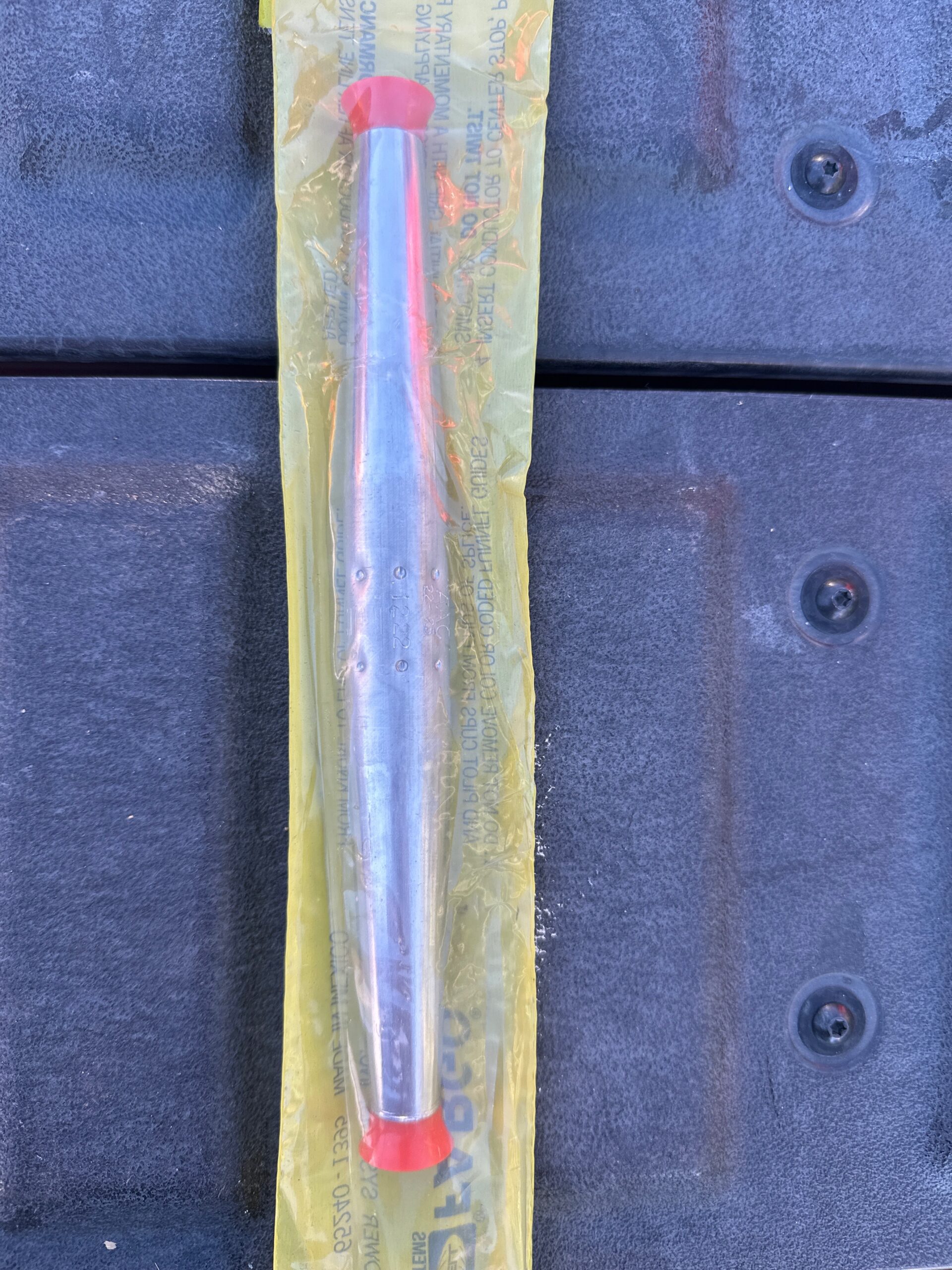

The Fargo GL-402A Automatic Tension Splice is a full-tension automatic connector designed for #4 ACSR, #4 AAAC, and #4 AAC conductors. It accommodates conductor diameters from 0.225″ to 0.250″ and provides a minimum holding strength of 95% of the conductor’s rated breaking strength. The GL-402A features an aluminum construction, color-coded orange end-funnel guides, and a factory-prepared design for quick and reliable field installation. It meets ANSI C119.4 Class A requirements and is suitable for overhead electrical distribution applications.
Dimensions & Specifications:
Manufacturer: Fargo / Hubbell Power Systems
Catalog Number: GL-402A
Conductor: #4 ACSR, #4 AAAC, #4 AAC
Conductor Diameter Range: 0.225″–0.250″
Length: 9″
Width: 0.89″
Height: 0.89″
Approx. Weight: 0.216 lb
Color Code: Orange
Rating: 95% minimum of conductor rated breaking strength
Standard: ANSI C119.4 Class A, Full Tension
Installation: Automatic splice
Packaging: Individually bagged to protect against dirt before installation
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
