Description

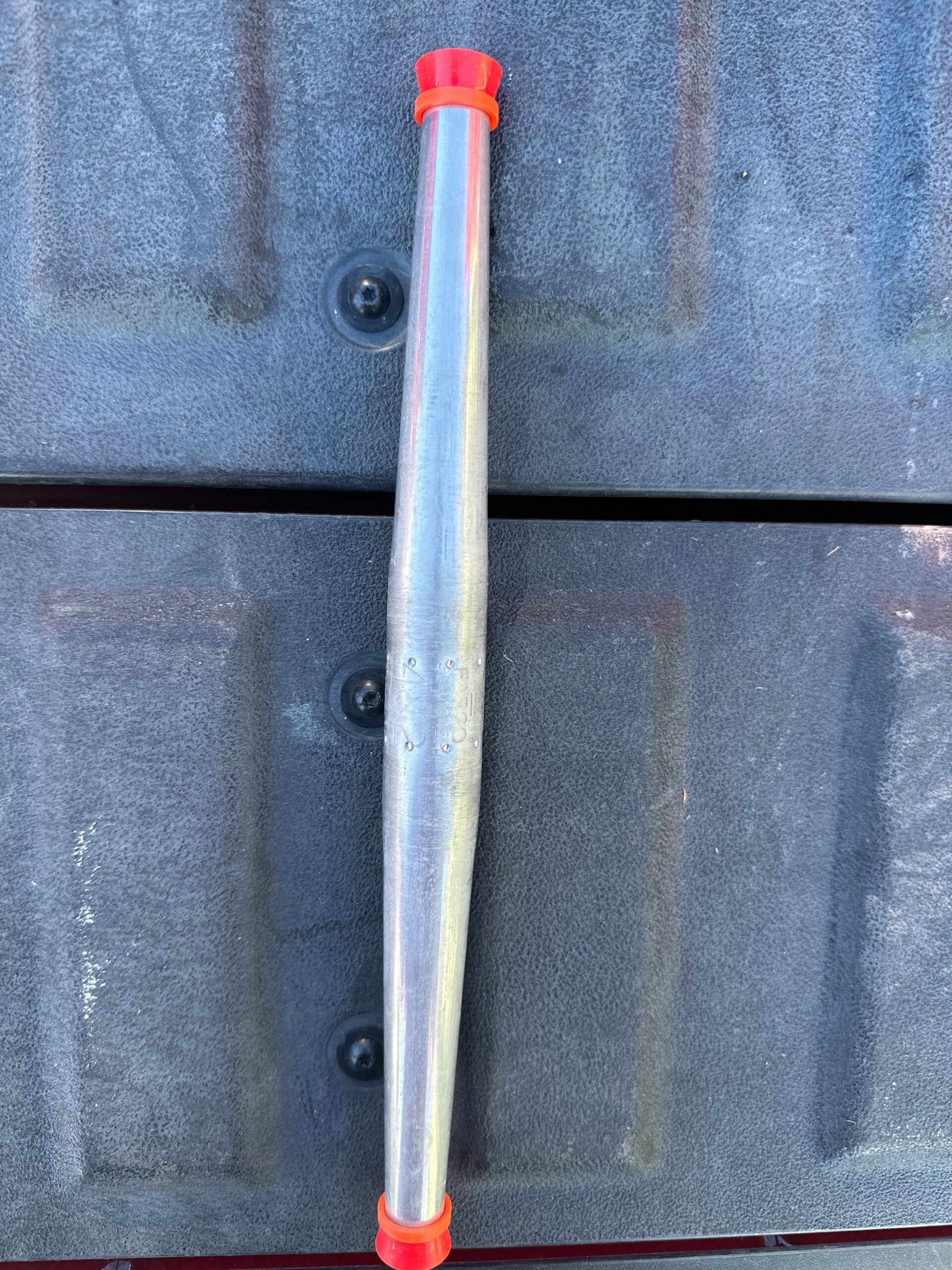

The Fargo GL-4042A Automatic Tension Splice is a full-tension automatic connector designed for splicing #4 and #2 ACSR, AAAC, and AAC conductors. It accommodates conductor diameters from 0.220″ to 0.320″ and is designed to provide a minimum of 95% of the conductor’s rated breaking strength. The aluminum-alloy connector features red and orange color-coded funnel guides for easy identification and factory-applied inhibitor protection. It meets ANSI C119.4 Class A requirements and provides a fast, reliable method for making permanent overhead conductor splices without conventional compression tooling. 21.
Dimensions & Specifications:
Manufacturer: Fargo / Hubbell Power Systems
Catalog Number: GL-4042A
Conductor: #4 & #2 ACSR, AAAC, AAC
Conductor Diameter Range: 0.220″–0.320″
Length: 9.00″
Width: 0.90″
Height: 0.90″
Weight: 0.343 lb
Material: Aluminum alloy
Color Code: Red / Orange
Rating: Full tension, minimum 95% RBS
Standard: ANSI C119.4 Class A
Installation: Automatic
Standard Package: 25 EA
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
