Description

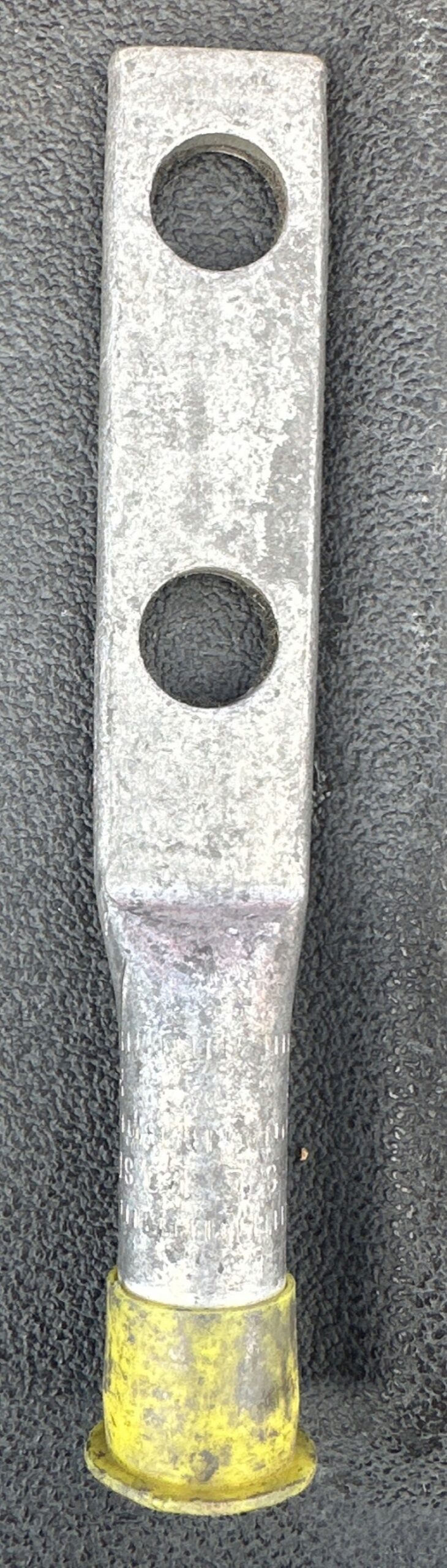

The HOMAC AL1/0N is a dual-rated, two-hole NEMA compression lug designed for terminating 1/0 AWG stranded aluminum or copper conductors, as well as 1/0 AWG ACSR and 2/0 AWG solid/compact conductors. It is manufactured from high-strength aluminum and factory-filled with oxide inhibitor to help prevent oxidation and moisture intrusion. The lug uses standard compression tooling and meets ANSI C119.4 requirements.
Dimensions & Specifications:
Brand: HOMAC / ABB
Catalog Number / SKU: AL1/0N
Type: 2-Hole Straight NEMA Compression Lug
Conductor: 1/0 AWG stranded aluminum/copper
ACSR: 1/0 AWG
Solid/Compact: 2/0 AWG
Material: Aluminum
Finish: Aluminum
Color Code: Yellow
Die Index: TU, 52, BG, 243, 5/8, CSA-22, 687, 8A
Bolt/Stud Size: 1/2″
Mounting Holes: 2
Hole Diameter: 9/16″
Hole Spacing: 1-3/4″ center-to-center
Overall Length: 5-1/4″
Pad Length: 3-3/16″
Pad Width: 29/32″
Barrel Depth: 1-1/2″
Oxide Inhibitor: Factory prefilled
Voltage Rating: 600 V to 35 kV when properly installed
Standard: ANSI C119.4
UPC: 783786693016
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
