Description

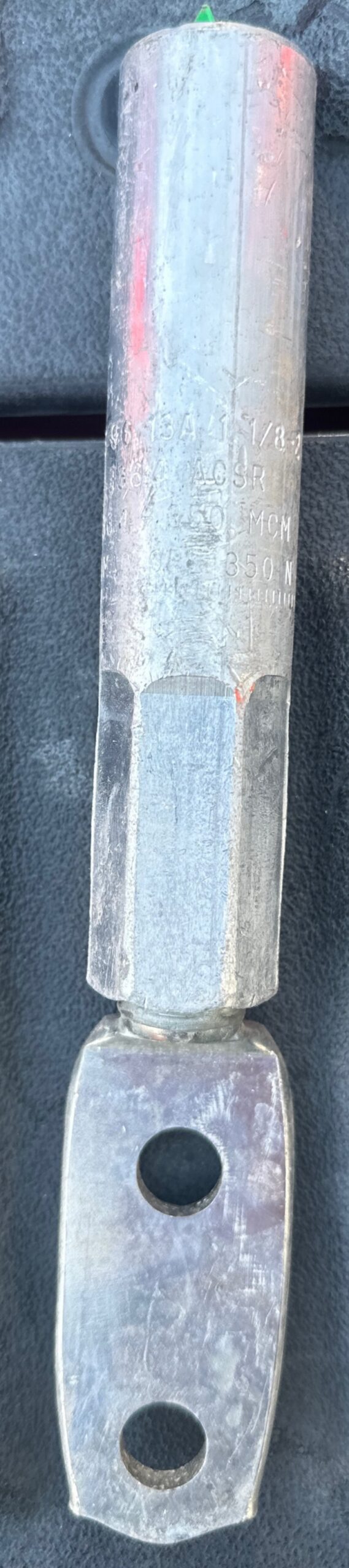

The HOMAC CPL350N is a heavy-duty two-hole bi-metallic compression lug designed for terminating 336.4 kcmil ACSR and 336.4–350 kcmil stranded aluminum conductors. It features an aluminum compression barrel joined to a tin-plated copper pad, providing high strength, conductivity, and corrosion resistance. The lug is factory-filled with oxide inhibitor and uses a standard 1/2-inch mounting bolt with 1-3/4-inch hole spacing.
Dimensions & Specifications:
Brand: HOMAC / ABB
Catalog Number: CPL350N
Alternate Catalog: CPL 350 N
Type: Bi-Metallic 2-Hole Compression Lug
ACSR: 336.4 kcmil
Aluminum: 336.4–350 kcmil stranded
Material: Aluminum barrel / tin-plated copper pad
Finish: Tin-plated pad
Bolt Size: 1/2″
Mounting Holes: 2
Hole Diameter: 9/16″
Hole Spacing: 1-3/4″
Die Codes: 96, 13A, 1-1/8-2
Oxide Inhibitor: Factory prefilled
Insulation: Bare
UPC: 783786714421
Application: ACSR and aluminum conductor termination
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
