Description

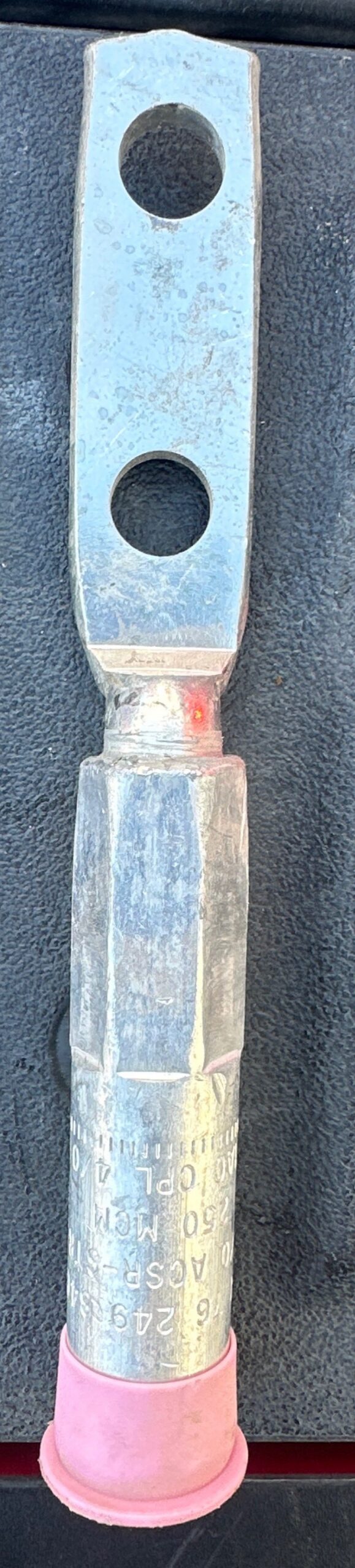

The HOMAC CPL4/0N is a heavy-duty two-hole bi-metallic compression lug designed for terminating 4/0 ACSR and 4/0–250 kcmil aluminum conductors. It features an aluminum compression barrel combined with a tin-plated copper mounting pad, providing high strength, conductivity, and corrosion resistance. The connector is factory-filled with oxide inhibitor and uses a standard 1/2-inch mounting configuration.
Dimensions & Specifications:
Brand: HOMAC / ABB
Catalog Number / SKU: CPL4/0N
Type: Bi-Metallic 2-Hole Compression Lug
ACSR: 4/0 AWG
Aluminum: 4/0–250 kcmil
Barrel Material: Aluminum
Pad Material: Tin-plated copper
Mounting: 2-hole NEMA
Bolt Size: 1/2″
Hole Diameter: 9/16″
Hole Spacing: 1-3/4″
Die Codes: TX, 76, 249, 840, 11A
Oxide Inhibitor: Factory prefilled
Insulation: Bare
Standard: ANSI C119.4
UPC: 783786714438
