Description

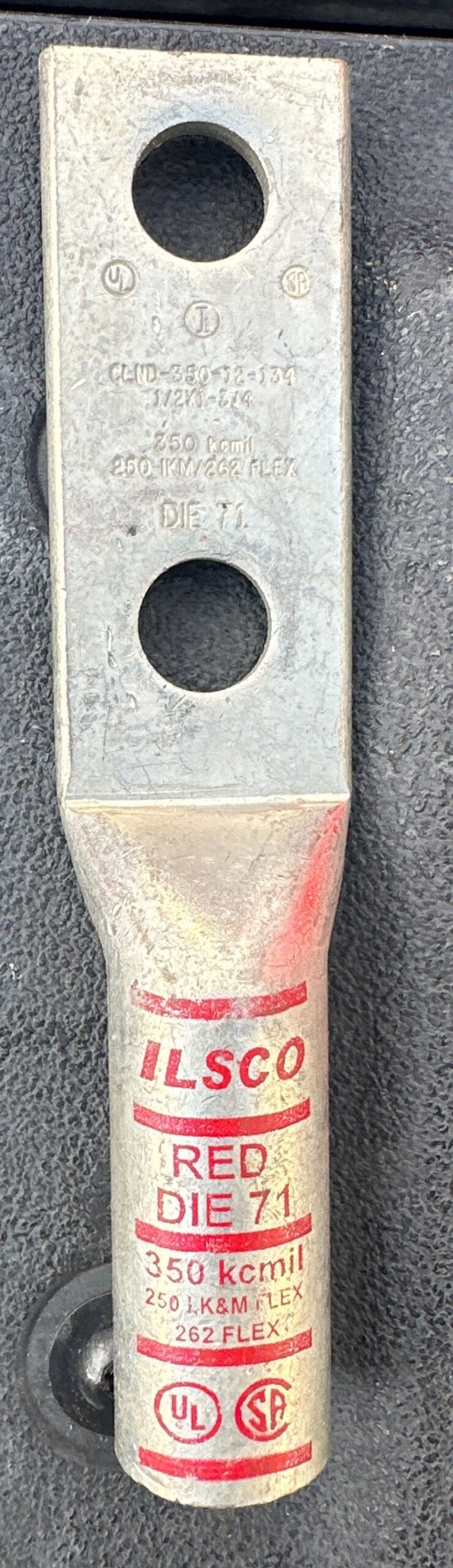

The ILSCO CLND-350-12-134 is a long-barrel, two-hole copper compression lug designed for 350 kcmil stranded copper conductors. It also accommodates 250 kcmil Class I, K and M flexible conductors and 262.2 kcmil DLO cable. The lug is manufactured from high-strength seamless copper tubing and electro-tin plated for corrosion resistance and conductivity. Its red color code and I-71 die index identify the appropriate compression tooling.
Dimensions & Specifications
Brand: ILSCO
Catalog Number / SKU: CLND-350-12-134
Series: SureCrimp®
Type: 2-Hole Copper Compression Lug
Conductor: 350 kcmil stranded copper
Alternate Conductor: 250 I, K, M FLEX / 262.2 DLO
Expanded Range: 350 kcmil – 3/0 AWG
Material: Copper
Finish: Electro-tin plated
Color Code: Red
Die Index: I-71
ILSCO Die: ILD-71
Bolt Size: 1/2″
Mounting Hole Diameter: 0.562″
Hole Spacing: 1.75″
Barrel Length: 2.00″
Overall Length: 5.623″
Barrel OD: 0.890″
Barrel ID: 0.703″
Tang Width: 1.291″
Temperature Rating: 90°C
Voltage Rating: Up to 35 kV with appropriate installation
Standards: UL 486A/B, UL 467, CSA
Carton Quantity: 10
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
