Description

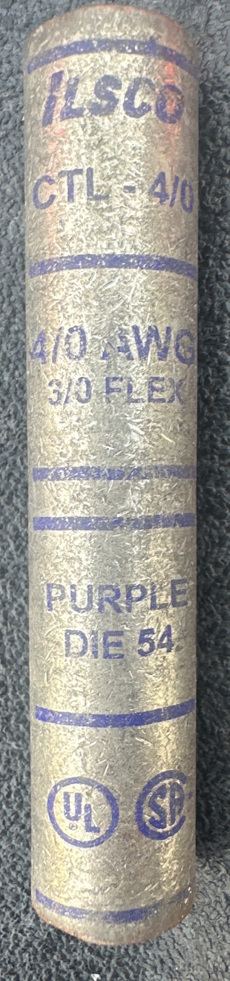

The ILSCO CTL-4/0 SureCrimp® is a long-barrel copper compression splice designed for 4/0 AWG stranded copper conductors, with an expanded range that includes 3/0 AWG flexible copper cable. Manufactured from high-strength seamless copper tubing and electro-tin plated for corrosion resistance, it provides a durable, low-resistance connection. The purple color code identifies the proper compression die, ILSCO I-54 / ILD-54. It is suitable for copper Class B concentric/compressed and Class C concentric conductors and can be used in properly insulated applications up to 35 kV.
Dimensions & Specifications:
Brand: ILSCO
Catalog Number: CTL-4/0
Series: SureCrimp® CTL
Type: Long-Barrel Compression Splice
Conductor: 4/0 AWG stranded copper
Flex Range: 3/0 AWG G, H, I, K, M and DLO
Expanded Conductor Range: 4/0 AWG – 1 AWG
Material: Copper
Finish: Electro-tin plated
Color Code: Purple
Overall Length: 3.375 in (3-3/8″)
Inside Diameter: 0.547 in
Outside Diameter: 0.687 in
Die Index: I-54
ILSCO Die: ILD-54
Barrel: Long, chamfered entry
Center Wire Stop: Yes
Temperature Rating: 90°C
Voltage Rating: Up to 35 kV with proper insulation/spacing
Standards: UL 486A/B; CSA C22.2 No. 65-03
Carton Quantity: 10
UPC: 783669128253
