Description

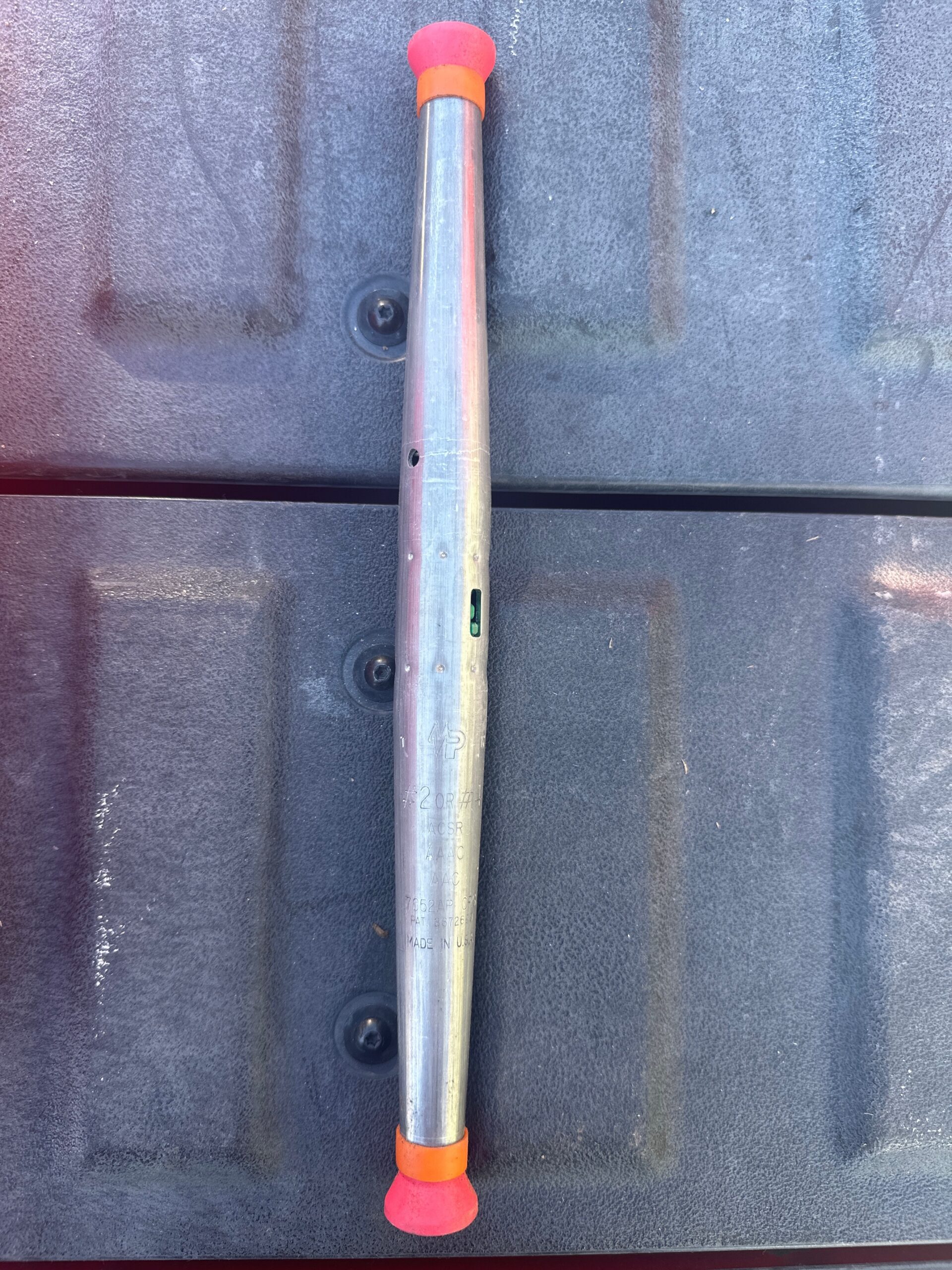

The MacLean Power Systems 7652AP Automatic Tension Splice is a range-taking, full-tension connector designed for splicing #2 and #4 ACSR, AAAC, and AAC conductors. It is rated to hold a minimum of 95% of the conductor’s rated breaking strength (RBS) and meets ANSI C119.4 Full Tension Class A requirements. The splice features die-cast aluminum jaws, an aluminum-alloy tube, factory-installed inhibitor, and red/orange color-coded strand guides for easy conductor identification. Its automatic design provides fast, reliable field installation without compression tooling. The 7652AP is also RUS approved. 22.
Dimensions & Specifications:
Manufacturer: MacLean Power Systems
Catalog Number: 7652AP
Conductor: #2 & #4 ACSR, AAAC, AAC
Conductor Diameter Range: 0.229″–0.340″
Overall Length: 11.6″
Width/Diameter: 1.01″
Strand Guide: Red / Orange
Jaws: Die-cast aluminum
Tube: Aluminum alloy
Spring: Galvanized steel wire
Rating: Minimum 95% RBS
Standard: ANSI C119.4 Full Tension, Class A
Installation: Automatic
Standard Package: 100 EA
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
