Description

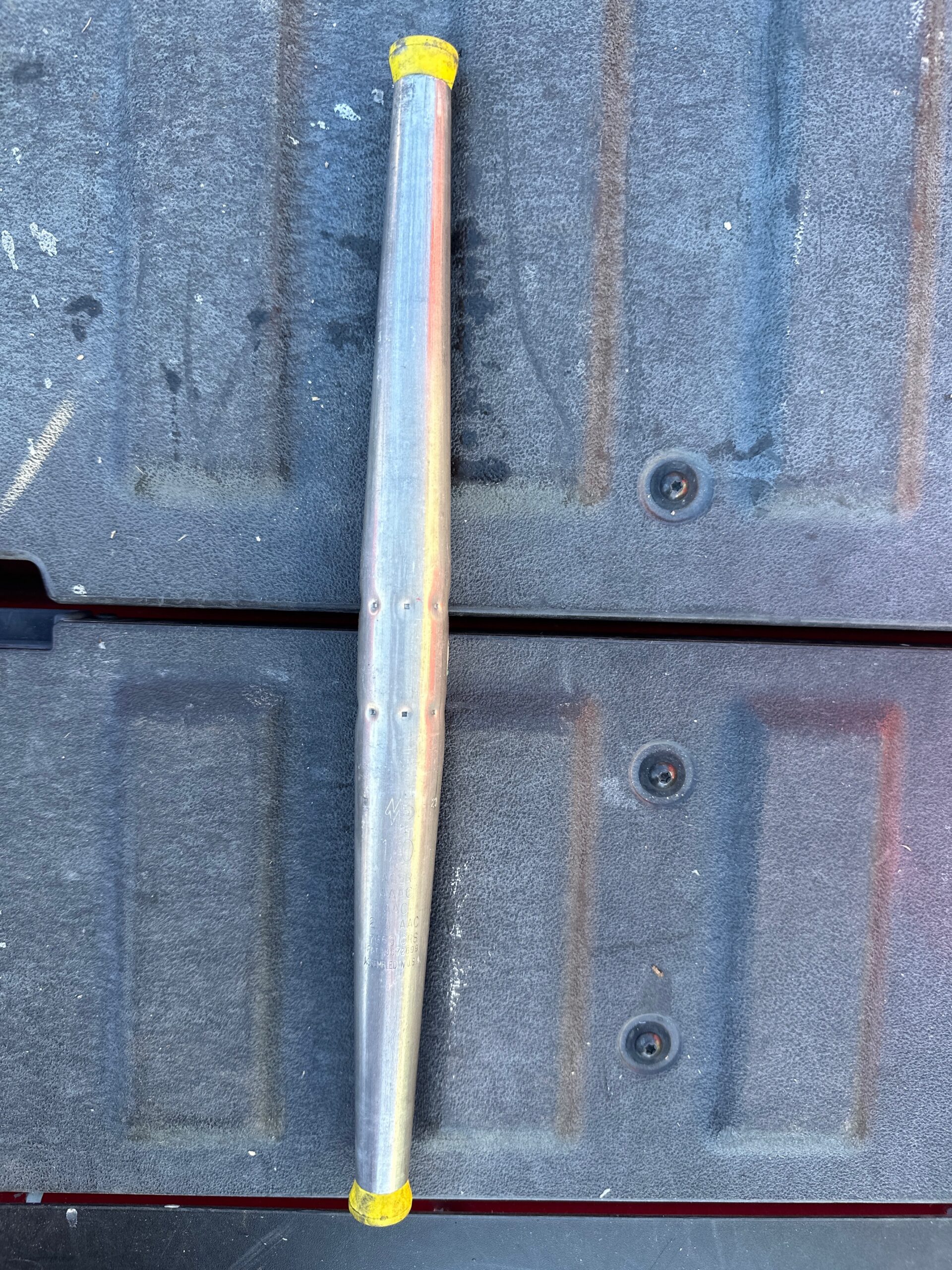

The MacLean Power Systems 7653 ConductRlink Automatic Tension Splice is a full-tension automatic connector designed for splicing 1/0 ACSR, 1/0 AAAC, and 1/0–2/0 AAC conductors. It is rated to hold a minimum of 95% of the conductor’s rated breaking strength (RBS) and meets ANSI C119.4 Full Tension Class A requirements. The connector features an aluminum-alloy tube, die-cast aluminum-alloy jaws, aluminum pilot cups, stainless-steel springs, and a yellow color-coded strand guide. Its automatic design provides a secure, reliable connection for overhead electrical distribution applications without conventional compression tooling.
Dimensions & Specifications:
Manufacturer: MacLean Power Systems
Catalog Number: 7653
Conductor: 1/0 ACSR, 1/0 AAAC, 1/0 & 2/0 AAC
Conductor Diameter Range: 0.365″–0.425″
Length: 14.28″
Diameter/Width: 1.20″
Strand Guide: Yellow
Tube: Aluminum alloy
Jaws: Die-cast aluminum alloy
Pilot Cups: Aluminum
Springs: Stainless steel
Rating: Minimum 95% RBS
Standard: ANSI C119.4 Full Tension Class A
Installation: Automatic
Standard Package: 50 EA
