Description

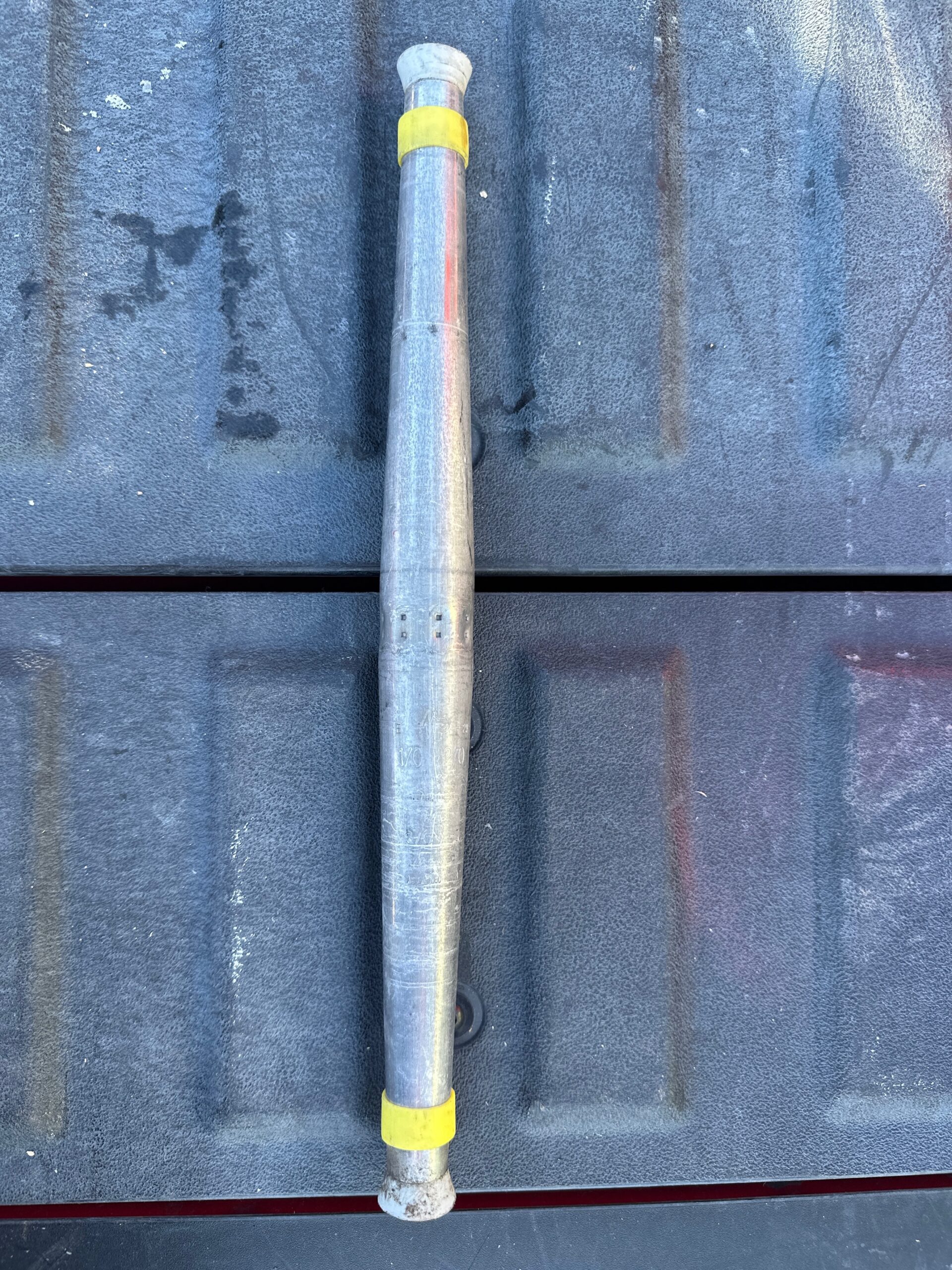

The MacLean Power Systems 7654AP ConductRlink Automatic Tension Splice is a full-tension automatic connector designed for splicing 1/0 and 2/0 ACSR, 1/0 and 2/0 AAAC, and 1/0, 2/0, and 3/0 AAC conductors. It accommodates conductor diameters from 0.365″ to 0.475″ and is designed to provide a secure mechanical and electrical connection for overhead electrical distribution applications. The connector features an aluminum-alloy tube, die-cast aluminum-alloy jaws, galvanized steel springs, aluminum pilot cups, and gray/yellow color-coded strand guides. It is rated for full-tension applications and is designed for efficient field installation without conventional compression tooling.
Dimensions & Specifications:
Manufacturer: MacLean Power Systems
Catalog Number: 7654AP
Conductor: 1/0 & 2/0 ACSR; 1/0 & 2/0 AAAC; 1/0, 2/0 & 3/0 AAC
Conductor Diameter Range: 0.365″–0.475″
Length: 15.13″
Diameter/Width: 1.27″
Strand Guide: Gray / Yellow
Tube: Aluminum alloy
Jaws: Die-cast aluminum alloy
Springs: Galvanized steel
Pilot Cups: Aluminum
Type: Automatic full-tension splice
Standard Package: 25 EA
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
