Description

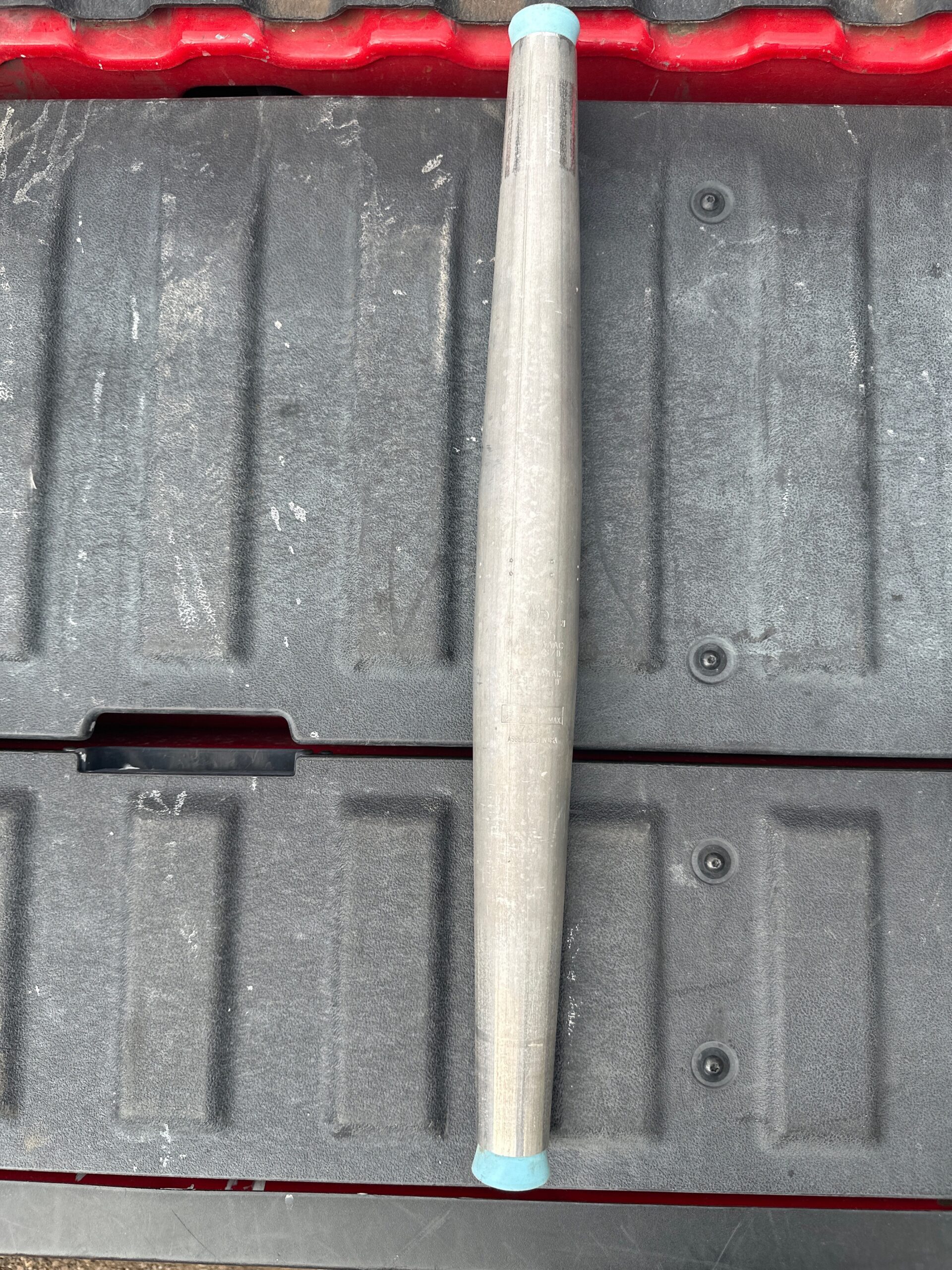

The MacLean Power Systems (MPS) 7659 Automatic Full-Tension Splice is engineered for permanent overhead conductor connections in utility transmission and distribution systems. Designed for 397.5 & 477 AAAC, 397.5, 477 & 556.5 AAC, and 397.5-18/1 & 477-18/1 ACSR conductors, it features durable aluminum alloy construction and meets ANSI C119.4 Full Tension Class A requirements. Rated to hold a minimum of 95% of the conductor’s Rated Breaking Strength (RBS) with a maximum tension rating of 12,500 lbs for 556.5 AAC, it provides dependable long-term performance.
Dimensions
Length: 22.58 in (573.53 mm)
Diameter: 2.06 in (52.32 mm)
Conductor Diameter Range: 0.723–0.856 in
Maximum Tension: 12,500 lbs (556.5 AAC)
Minimum Strength: 95% of Rated Breaking Strength (RBS)
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
