Description
The MacLean Power Systems (MPS) Type XS Fuse Cutout is an outdoor, pole-top distribution fuse cutout designed to provide full-fault-spectrum protection for overhead electrical distribution systems. Type XS units are available for systems from approximately 4.16 kV through 25 kV, with various continuous-current and interrupting-current ratings. The design uses single venting directed down and away, helping keep exhaust away from adjacent phases. The fuse tube is designed for easy insertion, closing, opening, and removal during field operation.
Dimensions & Specifications
– Brand: MacLean Power Systems (MPS)
– Product Family: Type XS
– Type: Fuse Cutout
– Application: Overhead electrical distribution
– Nominal Voltage: 14.4 kV class
– Maximum Voltage: 15 kV
– BIL: 110 kV for the 15 kV configuration
– Fuse Tube: Synthetic/polymer
– Configuration: Pole-top fuse cutout
– Continuous Current: 100 A or 200 A, depending on exact catalog configuration
– Interrupting Rating: Up to 12,000 A asymmetrical on applicable 200 A Type XS configurations
– Fuse Tube Length: Approximately 11.25 in. for the 15 kV Type XS configuration
– Leakage Distance: Approximately 8.5 in.
– Construction: Corrosion-resistant current path and heavy-duty outdoor construction

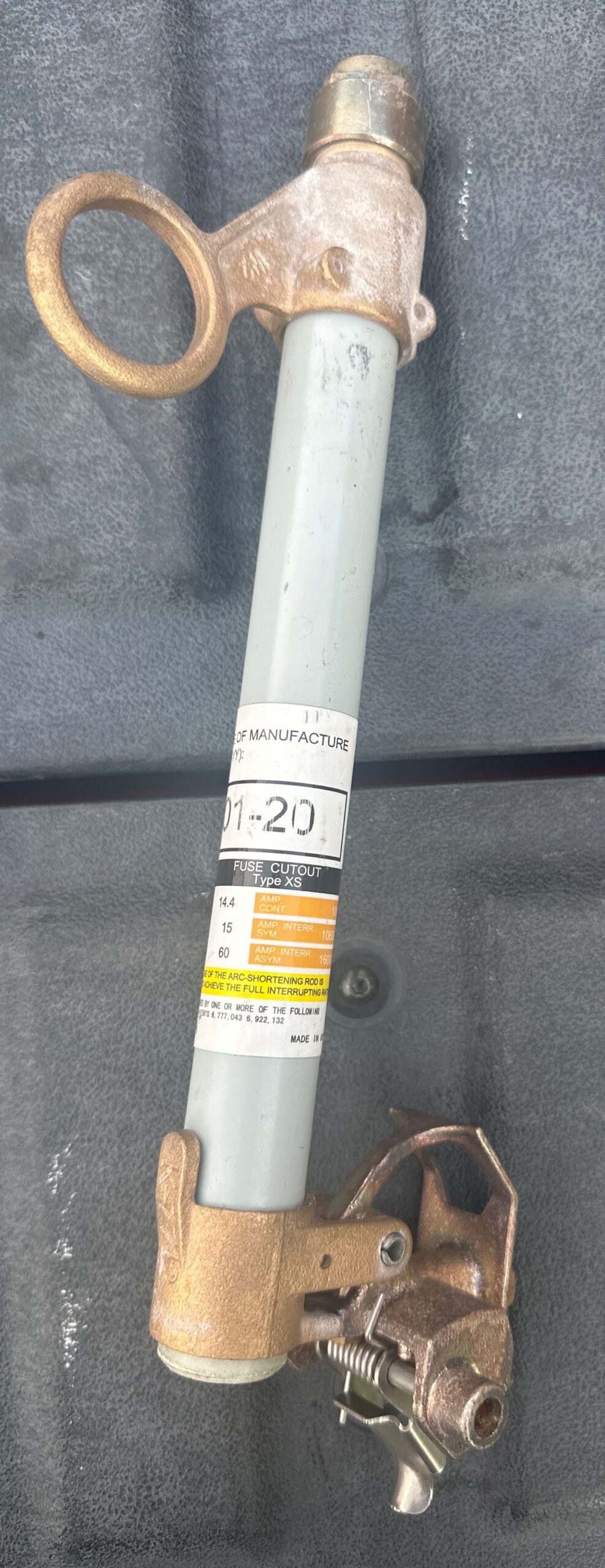

– Fuse Tube/Blade: Removable
– Application: Utility distribution, transformer and feeder protection
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
