Description

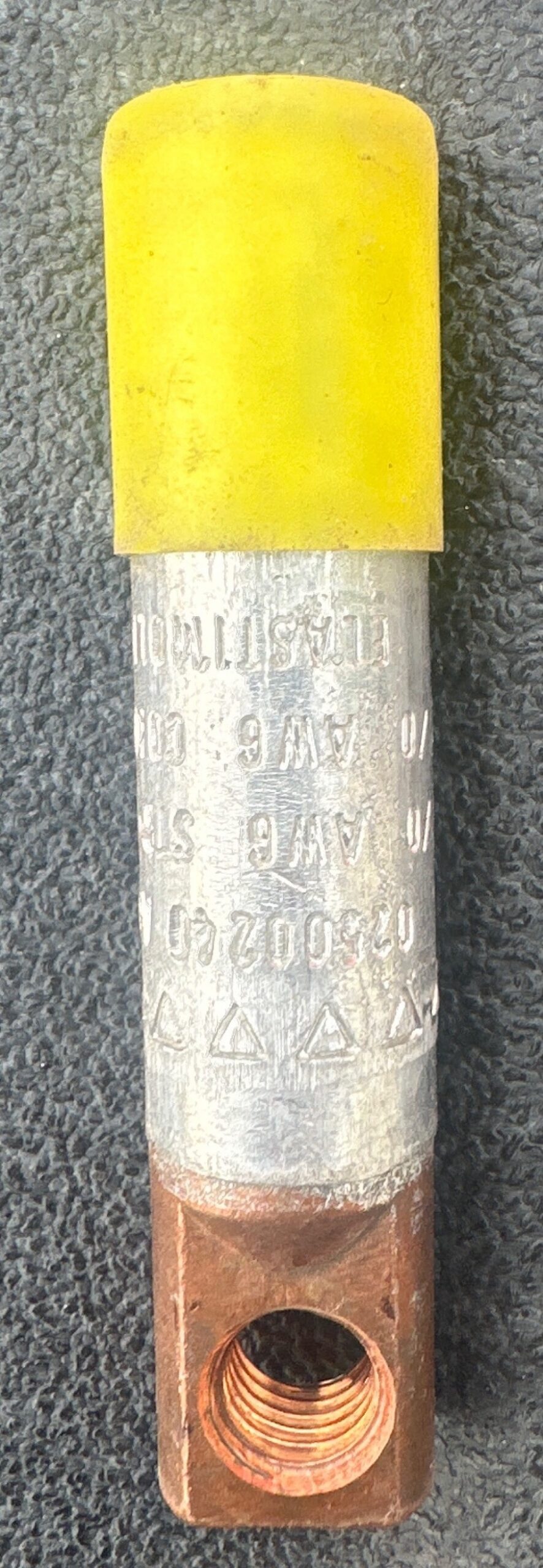

The Elastimold 02500240 is a long bi-metallic compression lug designed for 200 A loadbreak elbow connectors used in medium-voltage power distribution systems. It accommodates 1/0 AWG stranded/compressed conductors and 2/0 AWG solid/compact conductors, in either aluminum or copper. The bi-metal construction provides compatibility between aluminum or copper conductors and the loadbreak connector interface. It is designed for use inside compatible Elastimold loadbreak, repair, or replacement elbows.
Dimensions & Specifications:
Brand: Elastimold® / ABB
Catalog Number: 02500240
Alternate Catalog Number: EM02500240
Type: Long Bi-Metallic Loadbreak Compression Lug
Application: 200 A loadbreak elbow systems
Voltage Rating: 15–35 kV
Current Rating: 200 A
Conductor: 1/0 AWG stranded/compressed AL or CU
Conductor: 2/0 AWG solid/compact AL or CU
Material: Bi-metal — aluminum/copper
Finish: Bare
Overall Length: 2.88″
Diameter: 0.63″
Connection: Compression
Size Code: 240
Standard: IEEE 386
UPC: 783786666003
Installation: Must be protected/installed inside a compatible loadbreak elbow, repair elbow, or replacement elbow.
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
