Description

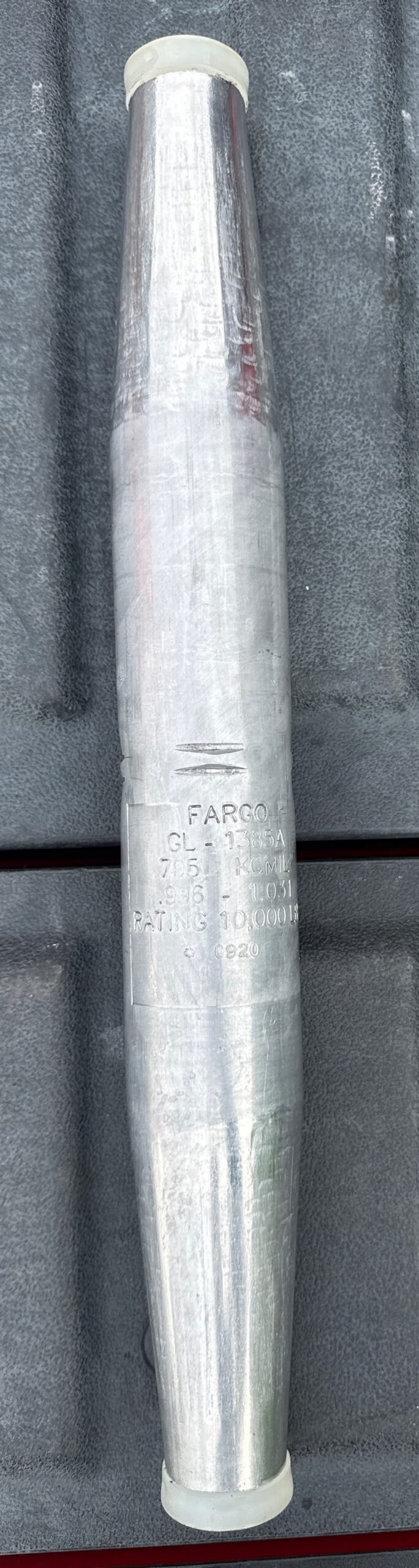

The FARGO GL1385A is an automatic, full-tension aluminum splice designed for joining large overhead conductors. It is rated for 795 kcmil AAC and compatible ACSR conductors within a 0.996–1.031 inch conductor diameter range. The connector provides a full-tension connection rated at 95% of the conductor’s rated breaking strength and is an ANSI C119.4 Class A connector. It uses color-coded funnel guides for conductor insertion and is individually bagged to help protect it from dirt before installation.
Dimensions & Specifications
– Brand: FARGO / Hubbell Power Systems
– Catalog Number: GL1385A
– Type: Automatic Full-Tension Splice
– Material: Aluminum alloy
– Conductor Type: AAC, AAAC, ACSR
– Primary Conductor: 795 kcmil AAC
– Compatible Conductors:
– 795 AAC Arbutus 37
– 795 AAC Lilac 61
– 750 AAC Cattail 61
– 636 ACSR Egret 30/19
– 666.6 ACSR Flamingo 24/7
– 666.6 ACSR Gannet 26/7
– Conductor Diameter Range: 0.996–1.031 in. (25.30–26.19 mm)
– Overall Length: 16 in.
– Width: 2 in.
– Height: 2 in.
– Color Code: Natural
– Maximum Design Rating: 10,000 lb / 44.5 kN
– Performance: Full tension, 95% of conductor rated breaking strength
– Standard: ANSI C119.4 Class A
– UPC: 096359311669
– Packaging: Individually bagged
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
