Description

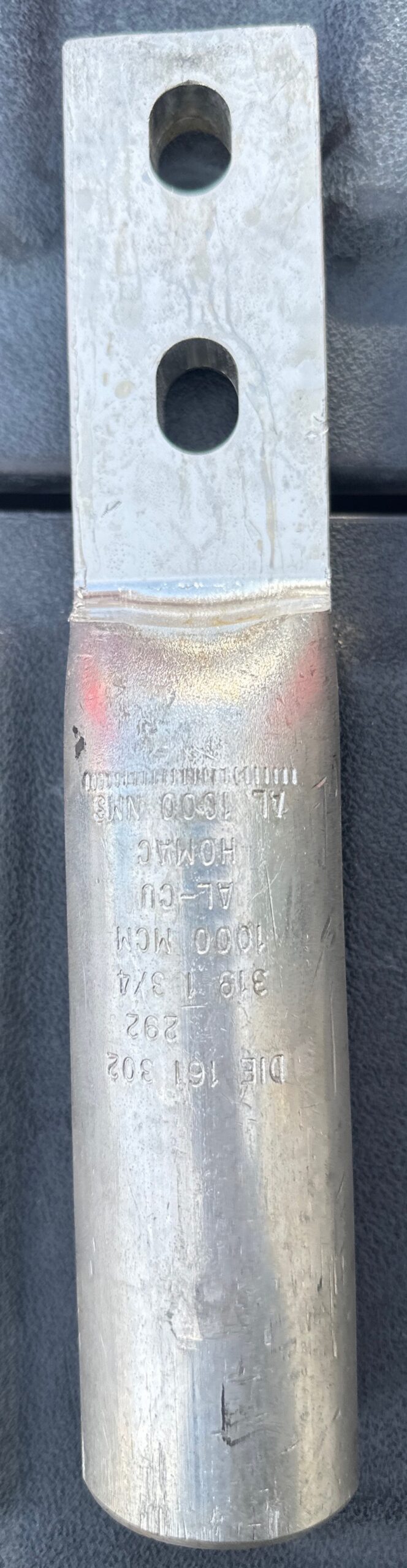

The HOMAC AL 1000 NMS is a heavy-duty two-hole NEMA compression lug designed for terminating 1000 kcmil aluminum or copper conductors. It is manufactured from high-strength aluminum for excellent conductivity and includes a tin-plated finish for enhanced corrosion resistance. The lug is factory-filled with oxide inhibitor and is compatible with 161, 292, 302, 319, and 1-3/4″ die systems. The NMS designation indicates the milled-side configuration, providing a straight lug suitable for general-purpose aluminum and copper terminations.
Dimensions & Specifications:
Brand: HOMAC
Manufacturer: ABB Installation Products / Blackburn-HOMAC
Catalog Number: AL 1000 NMS
Type: 2-Hole NEMA Compression Lug
Conductor: 1000 kcmil AL/CU
Conductor Type: Aluminum / Copper, concentric
Material: Aluminum
Finish: Tin-plated
Die Index: 161, 292, 302, 319, 1-3/4
Mounting: 2-hole NEMA
Bolt/Stud Size: 1/2″
Overall Length: 9-1/2″
Pad Width: 3-5/8″
Pad Length: 1-3/4″
Barrel Length: 4-5/8″
Barrel Diameter: 1-47/64″
Bore: 1-3/4″ nominal / approximately 1-47/64″ barrel diameter
Oxide Inhibitor: Factory prefilled
Standard: ANSI C119.4
UPC: 783786693085
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
