Description

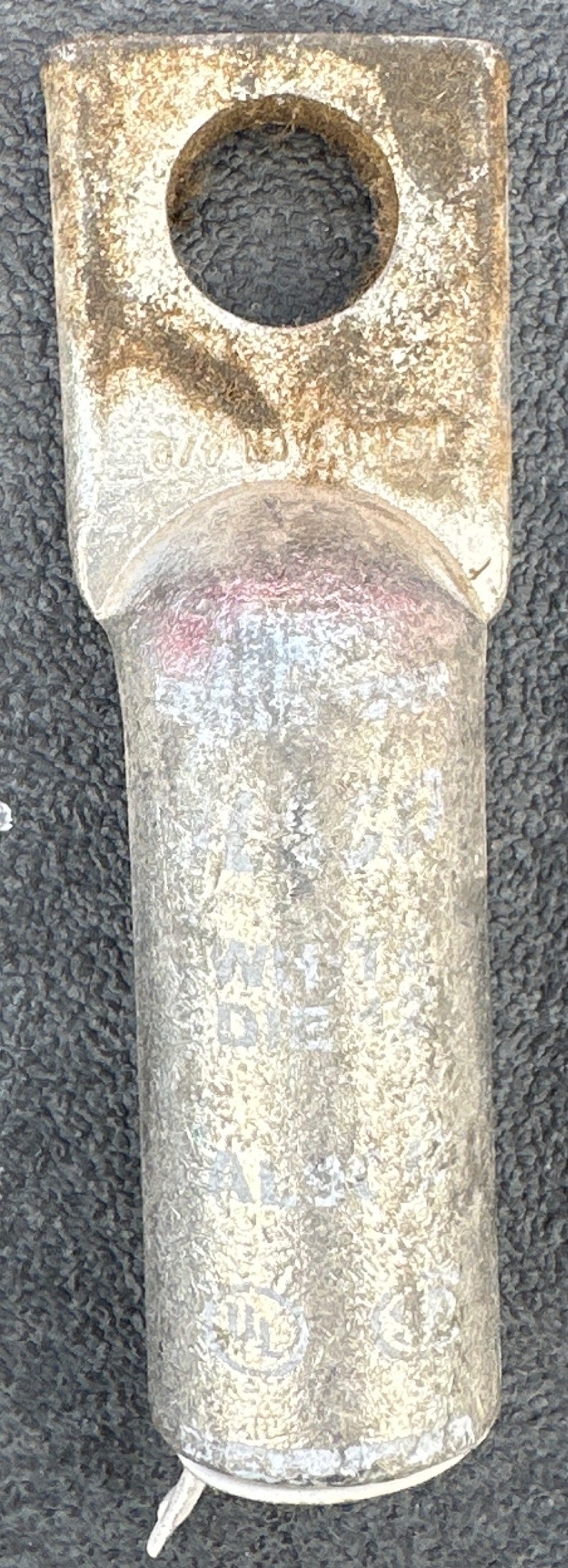

The ILSCO ACL-4/0 is a long-barrel, single-hole aluminum compression lug designed for 4/0 AWG aluminum or copper conductors. It is manufactured from high-strength aluminum alloy, electro-tin plated, and factory-filled with DE-OX® oxide inhibitor. The white color code identifies the required ILSCO Die 12. The lug is suitable for electrical applications up to 35 kV when properly installed with the required clearances and insulation techniques.
Dimensions & Specifications:
Brand: ILSCO
Catalog Number / SKU: ACL-4/0
Series: ACL / ClearChoice®
Type: 1-Hole Long-Barrel Compression Lug
Conductor: 4/0 AWG AL/CU
Expanded Range: 4/0–1 AWG when installed with specified range-taking tooling
Material: Aluminum alloy
Finish: Electro-tin plated
Color Code: White
Die Index: 12
Compatible ILSCO Die: ILD-12
Mounting: 1 hole
Stud Size: 3/8″
Barrel Length: 1.906″
Overall Length: 3-3/8″
Inside Diameter: 0.553″
Outside Diameter: 0.854″
Tongue: 1.048″ L × 1.125″ W × 0.297″ thick
Temperature Rating: 90°C
Voltage: 600 VAC; suitable for higher-voltage applications up to 35 kV with proper installation
Standards: UL 486A-B, CSA
UPC: 783669000139
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
