Description

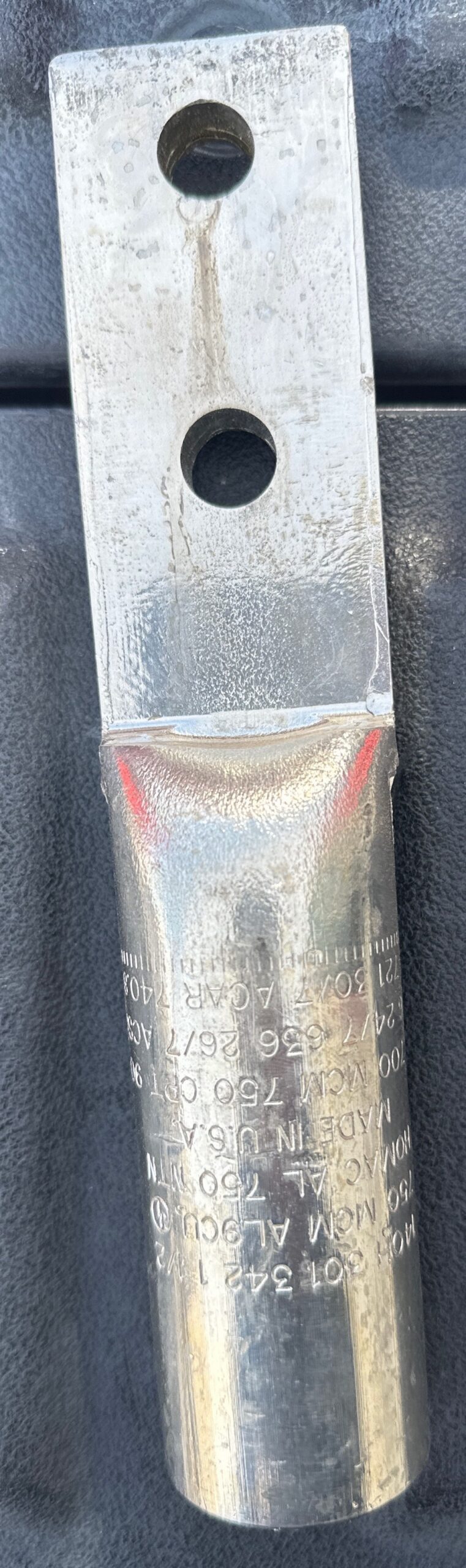

The HOMAC AL750NTN is a heavy-duty two-hole NEMA compression lug designed for terminating 750 kcmil aluminum or copper conductors. It is manufactured from high-strength, tin-plated aluminum and is factory-filled with oxide inhibitor to help prevent oxidation and moisture intrusion. The straight-lug design is compatible with multiple large-conductor configurations, including compact aluminum, ACSR, ACAR and AAAC.
Dimensions & Specifications:
Brand: HOMAC / ABB
Catalog Number: AL750NTN
Type: 2-Hole NEMA Compression Lug
Conductor: 750 kcmil AL/CU
Conductor Range: 700–750 kcmil compact; 900 kcmil compact
ACSR: 636 kcmil (24/7 and 26/7)
ACAR: 721 kcmil (18/1 and 30/7)
AAAC: 740.8 kcmil
Material: Aluminum
Finish: Tin-plated
Color Code: Red cap
Die Codes: 140H, 301, 342, 1-1/2
Alternate Die: 1-1/2H for 700 kcmil, 750 compact, 900 compact, etc.
Overall Length: 8-1/4″
Barrel Length: 3-5/16″
Barrel OD: 1-19/32″
Pad: 1-3/4″ W × 3-3/4″ L × 37/64″ minimum thick
Mounting Holes: (2) × 9/16″ diameter
Hole Spacing: 1-3/4″ centers
Stud/Bolt Size: 1/2″
Oxide Inhibitor: Factory prefilled
Standard: ANSI C119.4
UPC: 783786694075
Country of Origin: USA
Condition & Quality Assurance
We offer products in a variety of conditions, including new, new with damaged or non-original packaging, and used. All items are carefully inspected to ensure full functionality and reliable performance. Cosmetic condition and packaging may vary. Product images are for reference only and may not reflect the exact item shipped.
